Schematic Electronics circuit diagrams of FANUC Alpha i PSM+SPM+SVM (Mixed) A06B-6010, 6011, 6012, 6014 All PCB. inside units Schematic Circuit Diagram.

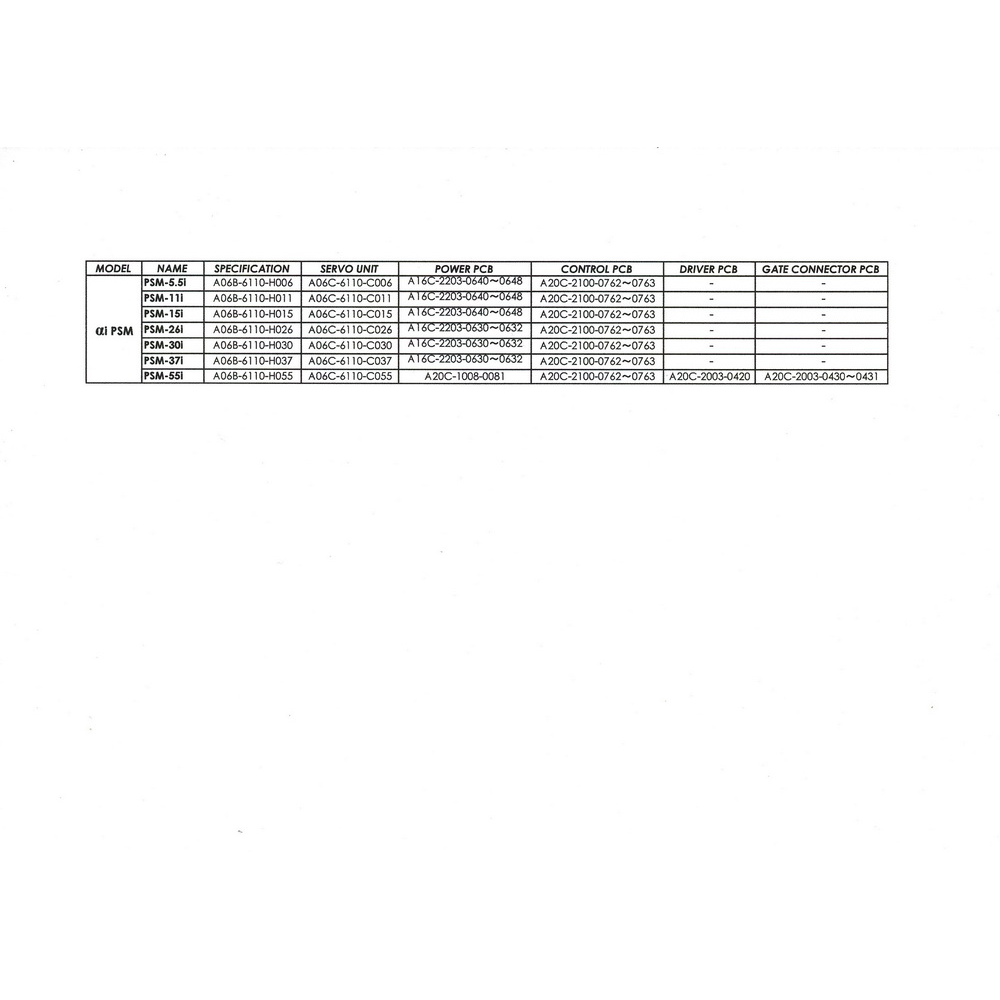

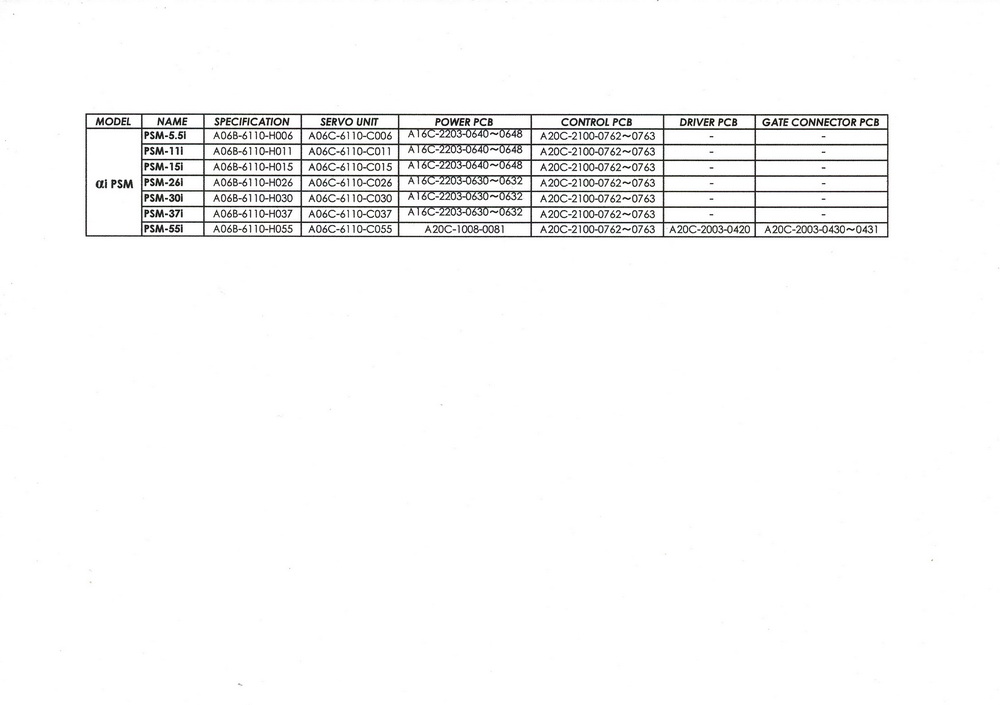

1) Set of A06B-6110-H006 to H055 unit all flles as listed in picture No.1

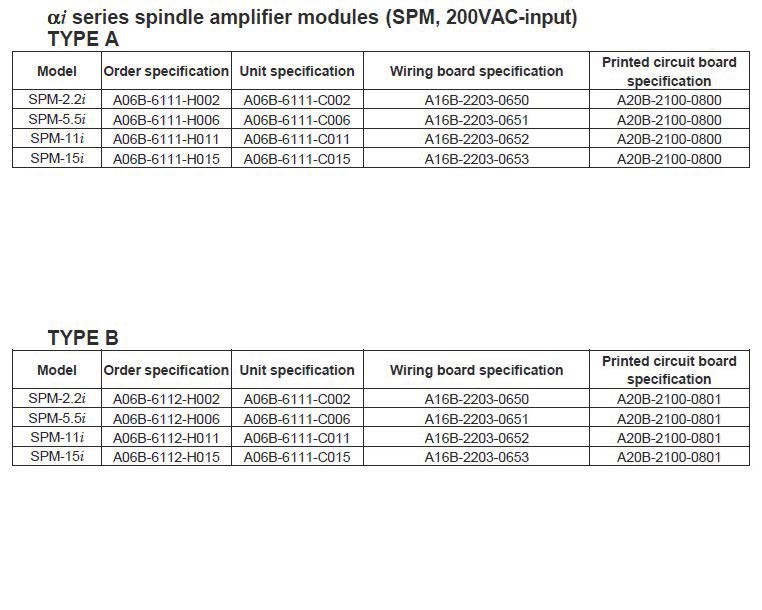

2) Set of A06B-6111-H002 to H015 + A06B-6112-H002 to H015 unit all flles as listed in picture No.2

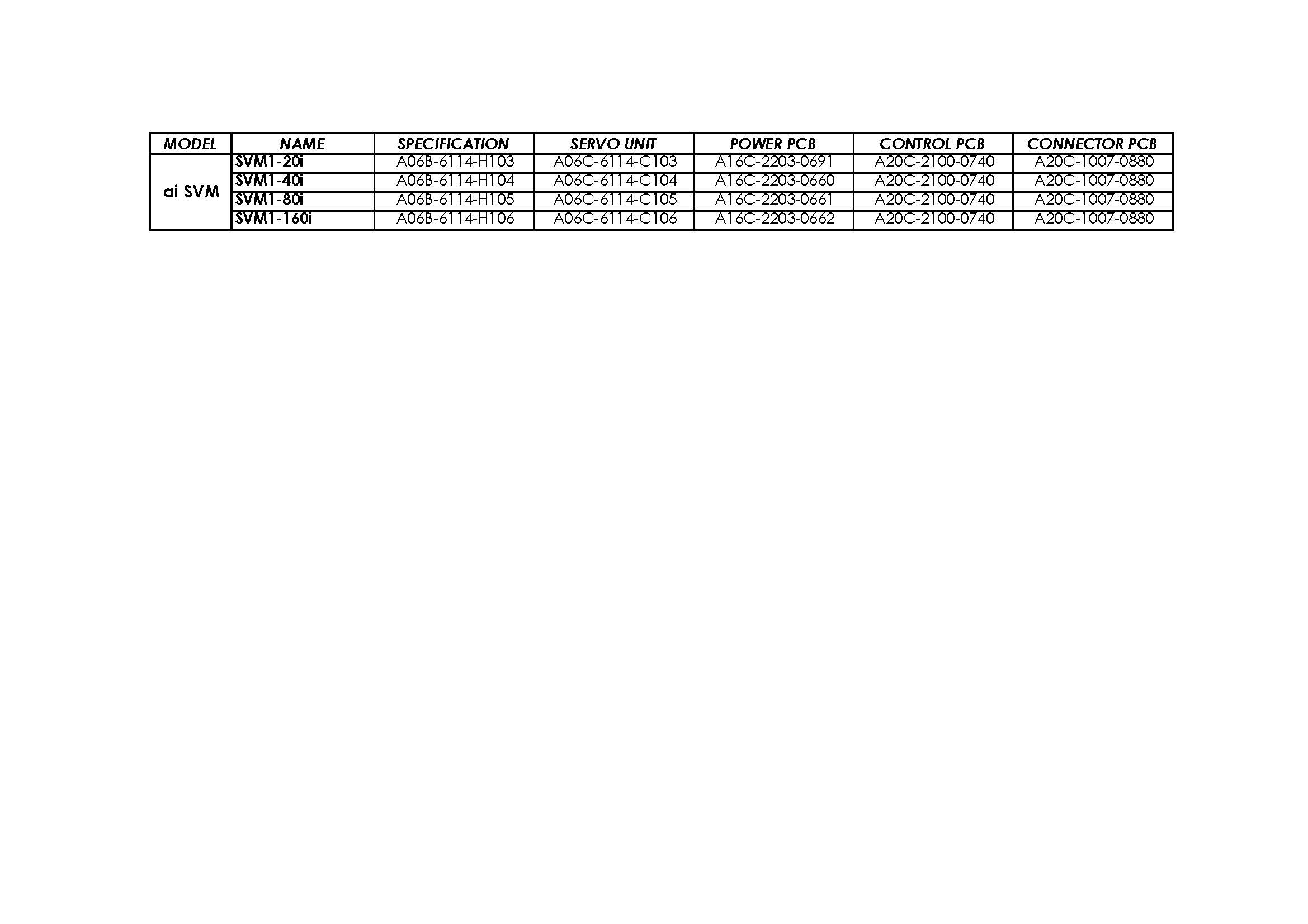

3) Set of A06B-6114-H103 to H106 unit all flles as listed in picture No.3
Email of Download link will send to your reference email address after you made payment in shortly time. (Also please check in your Junk mail box, too)
