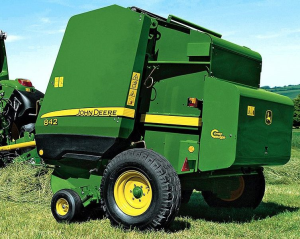

John Deere 842, 852, 854, 862, 864 Hay&Forage Round Balers All Inclusive Technical Manual (TM300119)

Illustrated Factory Diagnostic and Repair Technical Service Manual for John Deere Hay and Forage Round Balers Models 842, 852, 854, 862 and 864 (Worldwide Edition)

This manual contains high quality images, circuit diagrams, instructions to help you to maintenance, trounleshooting, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Language: English
Format: PDF, 1361 pages

Covered models:
  842
  852
  854
  864
  862

Contents:
  Electrical System - Repair
    Connectors
    Sensors and Switches
    Actuators
    BaleTrak and BaleTrak Plus Monitor
  Power Train
    Walterscheid Powerline
    Baler Main Drive Shaft
    Shear Bolt Clutch
    Walterscheid Slip Clutch
    Cam-Type Cut Out Clutch
    Gear Case
    Chains
    Sprocket Alignment
  Braking System - Repair
    Air Brakes
    Hydraulic Brakes
    Brake Shoe and Drum
  Hydraulic System
    Bale Density Control Valve
    Hydraulic Cylinders
    Hydraulic Hoses
    Gate Lock Valve
    Rotary Feeder Hydraulic Components
  Miscellaneous
    Axle
    Gate Latch
  Lubrication System - Repair
    Drive Chain Lubrication
  Pickup Repair
  Rotary Feeding Device
  Bale Chamber
  Net Tying System
  Twine Tying System
  Diagnostic Trouble Codes
  Diagnostic Trouble Codes for ISOBUS Baler
  Diagnostic Trouble Codes for BaleTrak Control
    Description
    Battery Voltage
    Bale Size Potentiometer R2 or RB311
    Right Bale Shape Potentiometer R4 or RB322
    Left Bale Shape Potentiometer R3 or RB321
    Twine Actuator M1
    Net Actuator M2
    Soft Core Valves Y1, Y5 and Y6
    Pickup Solenoid Valve Y4
    Knife Solenoid Valve Y3
    Drop Floor Solenoid Valve Y2
    Cleaning Auger S12
    Lower Drive Roll RPM Sensor S6
    Twine Pulley Sensors S7/S8
    Net Cut Switch S4 or Sensor SB414
    Right Gate Switch S1 or Sensor SB337
    Left Gate Switch S2 or Sensor SB336
    Oversize Bale Switch S3 or sensor SB317
    Positive Analog Reference
    EPROM
  Observable Symptoms
  Electrical System
    General Information
    Test Equipment
    Electrical Diagram/Battery Wiring Harness
    Electrical System/ELC Plus Monitor (Electronic Tying Control)
    Electrical Diagram/ELC Plus Monitor (Electronic Tying Control)
    Electrical System/BaleTrak Control
    Electrical Diagram/BaleTrak Monitor
    Diagnostic Modes/BaleTrak Monitor
    Electrical Diagram/ISOBUS Baler
    Diagnostic Tests - ISOBUS Baler
    Diagnostic Modes/ISOBUS Baler
    Advanced Machine Settings Mode/ISOBUS Baler
  Connector and Component Information
  Lubrication System - Operation and Tests
  Air Brake System - Operation and Tests
  Hydraulic Brake System - Operation and Tests
  Hydraulic System - Operation and Tests
{0}Safety
    General Information
    Bale Density/Gate Control - Description
    Bale Density/Gate Control - Tests
    Pickup Lift System (Baler without Precutter Device)
    Rotary Feeder Hydraulic System without Precutter Device - Description
    Rotary Feeder Hydraulic System without Precutter Device - Tests
    Rotary Feeder Hydraulic System with Precutter Device - Description
    Rotary Feeder Hydraulic System with Precutter Device - Tests
  Net Tying - Operation and Tests
  Special Tools
